plastikcam.com       Lomo Supersampler


The Lomo SuperSampler is a simple and basic fun camera with 4 lenses that takes 4 panoramic photos, 9x14mm, on one frame. It had a very short life cycle. This is the second version of a Lomo action sampler, there was an ActionSampler before which is still available. On the front it is marked "AS 3.0", as if to say that it's the 3.0 version of an action sampler.

Its main features are:

4x 20mm wide lens, F8, fixed focus, 30 cm -
Shutter 1/100, Standard mode: 4 pictures in 2 s, High-Speed mode: 4 pictures in 0.2 s
Size 102x64x32,  Weight 142 gr.

jpg/lomo_supersampler_IMG_8139.JPG
Camera with manual. It has never been used, there is still the sticker on the strap admonishing you to pull gently.

jpg/lomo_supersampler_IMG_8140.JPG
Camera front. On top a very tiny frame as aiming device. On the bottom a ring to pull for film advance and shutter cocking. 4 Lenses..

jpg/lomo_supersampler_IMG_8141.JPG
Camera back. Instructions in German.

jpg/lomo_supersampler_IMG_8142.JPG
Left side. Film rewind and
shutter ready indicator.

jpg/lomo_supersampler_IMG_8143.JPG
Right side. Film counter and rewind release button.

jpg/lomo_supersampler_IMG_8144.JPG
Camera top. Aiming device, back openening slider and shutter release.

jpg/lomo_supersampler_IMG_8145.JPG
Camera bottom. Ring to pull.

jpg/lomo_supersampler_IMG_8147.JPG
Camera back open. Sticker with instructions how to load the camera.

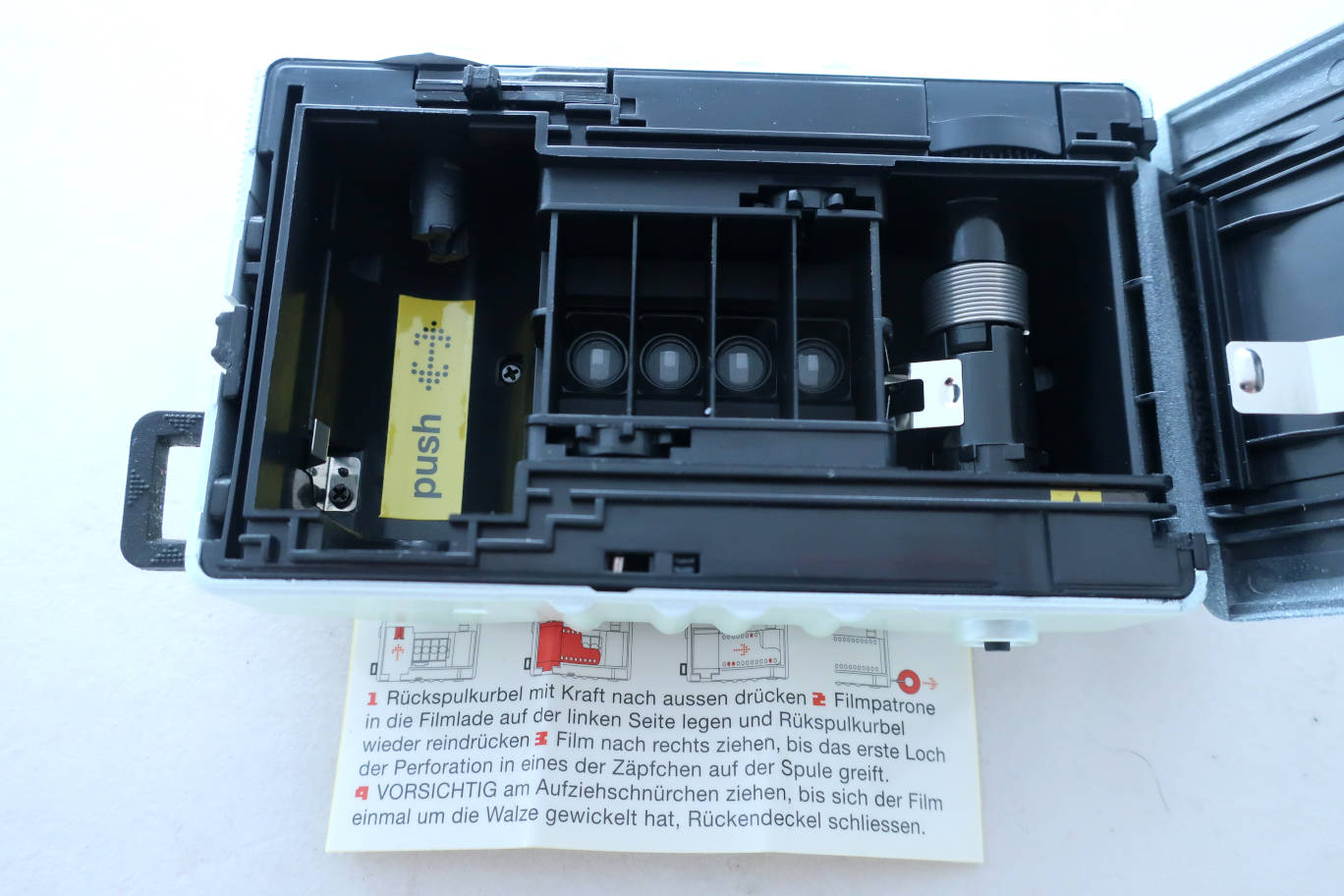

jpg/lomo_supersampler_IMG_8148.JPG
Film compartment. Sticker unfolded. It says: 1 Push the rewind handle towards the outside with force. 2 Insert cartridge to the left and push rewind handle back. 3 Pull film to the right until the first sprocket hole of the film hits a pin on the wind spool. 4 Pull the wind thread GENTLY until the film has wound one turn. Close back.

Using the Lomo SuperSampler is not so easy at first, but once you you get used, it's easy. In standard mode the cycle takes 2 seconds which gives different pictures from a moving subject. In high-speed mode it's only 0.2 seconds, so all pictures will nearly be the same. Don't move too quick, as 1/100s shutter speed may give blurred pictures unless you want them so.

As there is only one shutter speed, you have to choose your film depending on the weather conditions. On bright days ISO 200 is fine, on dull days ISO 400 is better. Modern film is quite flexible, so you will have usable results. Inside or at night photos are not possible. It's a toy or fun camera, all plastic, but it's funny.

The biggest problem of this camera is the thread to pull for film advance and shutter cocking. There are hundreds of complaints about a broken mechanism. Lomo tried to limit the damage by warning you to pull gently. Obviously they used low quality plastic gearing which breaks or is soon worn out. There is a repair advice on Flickr which solves the problem quite well, but you need DIY skills.

The first version, the ActionSampler, is more solid, but the pictures are a different format. So it's a choice.
