Lomo Sardina Beluga is a stylish, but technically a Lomo Style camera for 135 film. It is a basic plastic camera with a stylish metal shell, a plastic ultra wide angle lens and only basic features. It has an assorted flash with the same steam punk look. There are multiple versions of the Sardina in different styles, this one is said to be a collector's item. Its main features are:

22mm plastic ultra wide angle lens, only F8, 2-zone focus 0.6-1m, 1m-
Shutter ~1/100, B
Size 115 x 60 x 60mm
Weight: 160g (without film or lens cap)
Features: frame counter, double exposure prevention, shutter cocked via film advance, cable release thread, multi exposure, special flash connection

jpg/lomo_sardina_IMG_4179.JPG
The box.

jpg/lomo_sardina_IMG_4180.JPG
What's in the box. Camera, dedicated flash, colour filters for flash, poster with multilingual instructions on thr back side and 2 nicely made books.

jpg/lomo_sardina_IMG_4184.JPG
Sardina can style and size housing. The lens is collapsible.

jpg/lomo_sardina_IMG_4185.JPG
Lens extended and cap taken off.

jpg/lomo_sardina_IMG_4183.JPG
Rear view.

jpg/lomo_sardina_IMG_4186.JPG
Camera front.


jpg/lomo_sardina_IMG_4188.JPG
Camera back. Viewer, film presence window.

jpg/lomo_sardina_IMG_4187.JPG
Camera top. Rewind, viewer housing, film counter and film advance with shutter release. In front of the viewer: switch for normal and B shutter, multi exposure release. Hardly visible on the front of the lens: focussing distance,
∞ setting, can be set to "close" by turning the lens tube.

jpg/lomo_sardina_IMG_4189.JPG
Camera bottom. Tripod socket.

jpg/lomo_sardina_IMG_4190.JPG
Right side. Flash fixation, special flash socket, and camera back opening release.

jpg/lomo_sardina_IMG_4191.JPG
Left side.

jpg/lomo_sardina_IMG_4192.JPG
Camera back open.

jpg/lomo_sardina_IMG_4193.JPG
Film compartment.

jpg/lomo_sardina_IMG_4194.JPG
Camera and assorted flash mounted to the Sardina socket. The flash is called Fritz the Blitz.

jpg/lomo_sardina_IMG_4195.JPG
The Flash needs a CR123 battery and is quite powerful for a small flash, guide number 16 at ISO 100. It has 3 power settings.

jpg/lomo_sardina_IMG_4196.JPG

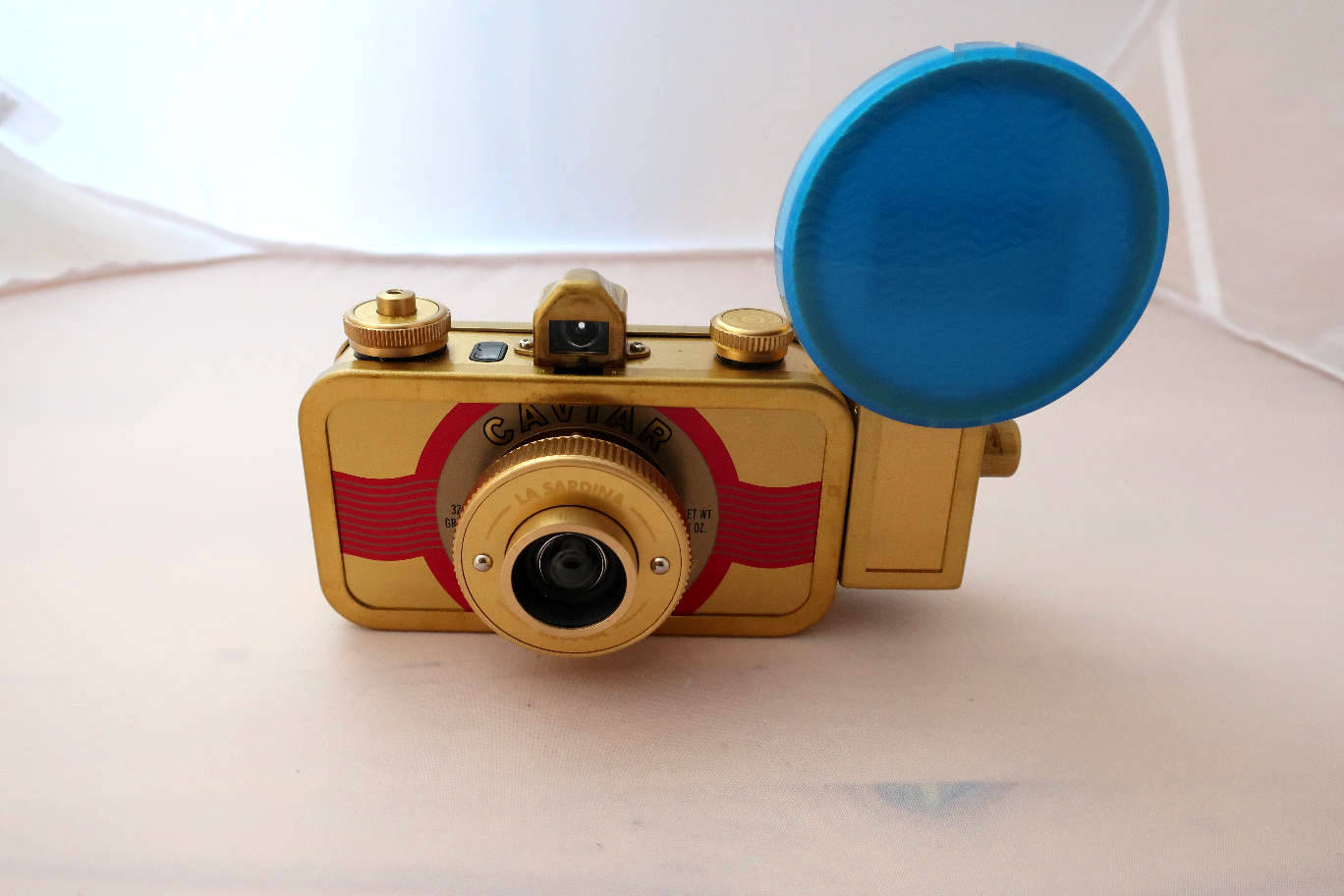

Flash with colour filter mounted.

The Lomo Sardina is a basic plastic camera with a very stylish and solid metal housing. It has only one speed and only one aperture, no automatic exposure, no automatic film advance, no autofocus, not even a rangefinder, a cheap plastic lens that produces some vignetting and random results. It feels more solid than Lomo Diana cameras. As for other Lomo cameras, I don't think about exposure, I try and hope for the best. Modern colour film helps. So for me the Sardina is a nice find.

I got mine in near new condition with the original box and its sought after flash for a small sum on Ebay, it was less than you pay normally for the flash alone. So it was worth a try. There is an adapter for the flash to be used on other cameras. That's why
Fritz the Blitz is so much sought after with its 3 different power settings.
